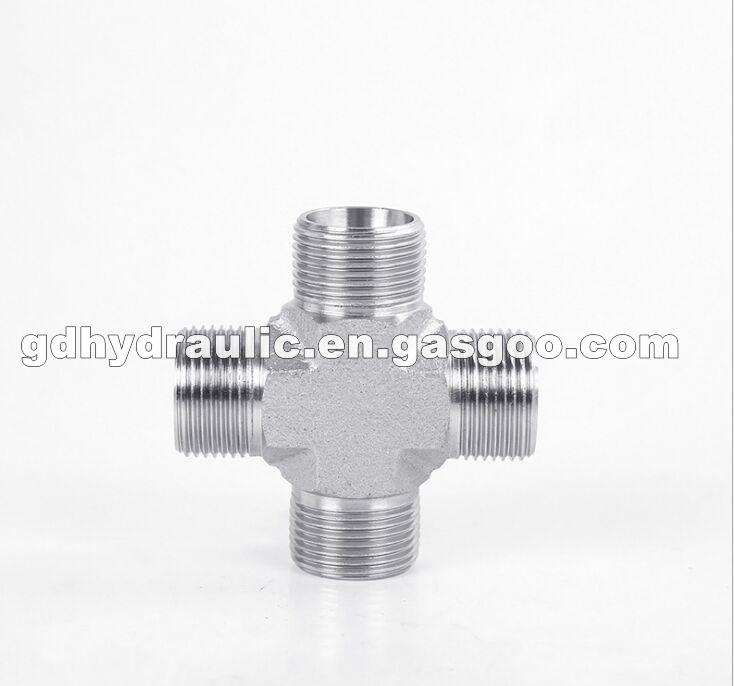

Cross Fittings

Cross Fittings
Cross Fittings
Previous
Next
Minimum Order:

100PCS

Export Ratio:

91% - 100%

Unit Price:

0.9

Samples:

Charge

Sample Price:

5

Place of Region:

China

Payment Terms:

T/T,D/P

Price Terms:

FOB

Delivery Port:

Qingdao

Delivery Time:

10

Market Type:

After Market

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

Cross Fittings

Product Attribute:

thread:BSP NPT M SAE thread

Application:

truck

Product Description:

Cross fittings




    PART NO.		    THREAD  TUBE O.D.      DIMENSIONS
    MPa
E,F,G,H   D1,D2,D3,D4   l1 L1 S1 S2
XC-12 M12X1.5   6   12 27 12 14 31.5

    L
XC-14 M14X1.5   8   14 29 12 17
XC-16 M16X1.5   10   15 30 14 19
XC-18 M18X1.5   12   17 32 17 22
XC-22 M22X1.5   15   21 36 19 27
XC-26 M26X1.5   18   23.5 40 24 32
XC-30 M30X2   22   27.5 44 27 36 16

    L
XC-36 M36X2   28   30.5 47 36 41
XC-45 M45X2   35   34.5 56 41 50
XC-52 M52X2   42   40 63 50 60
XD-14 M14X1.5   6   16 31 12 17 63

    S
XD-16 M16X1.5   8   17 32 14 19
XD-18 M18X1.5   10   17.5 34 17 22
XD-20 M20X1.5   12   21.5 38 17 24
XD-22 M22X1.5   14   22 40 19 27
XD-24 M24X1.5   16   24.5 43 24 30 40


Cross Fittings
Cross Fittings
